NEW! Drilling Crowfoot

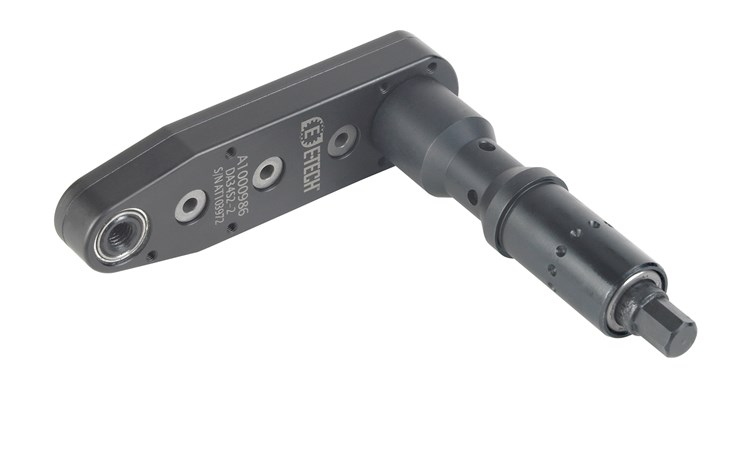

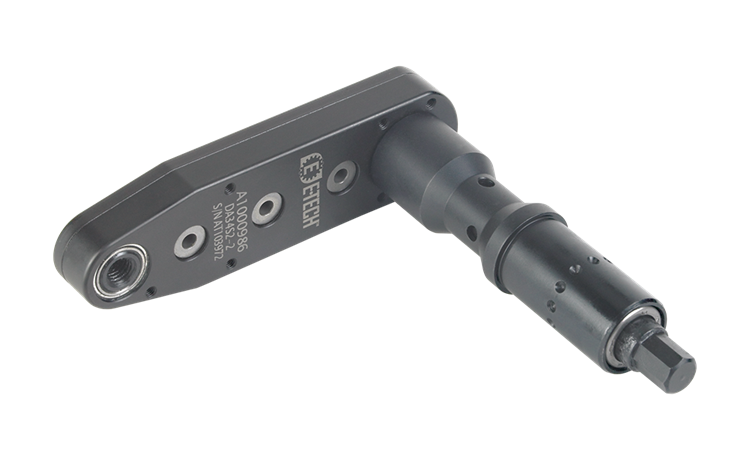

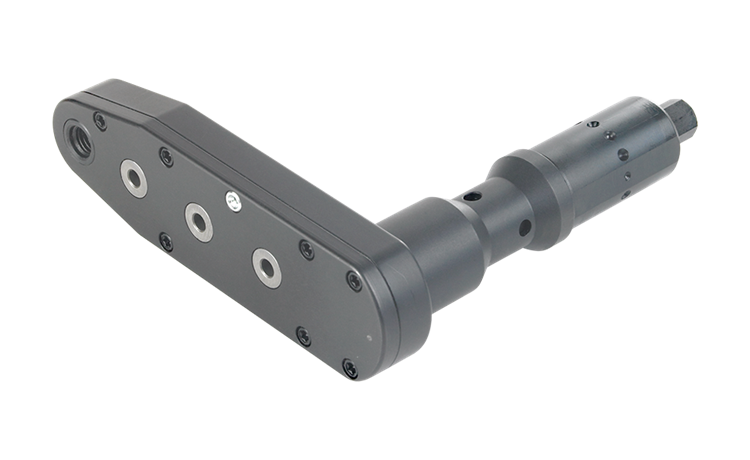

Drilling Crowfoot E-Tech
The new standard in durability and versatility in drilling crowfoot attachments.

Features & Benefits of the Most Versatile and Durable Crowfoot Drilling Attachments in the Industry



Modular Design

Allows for commonality of components across product line.

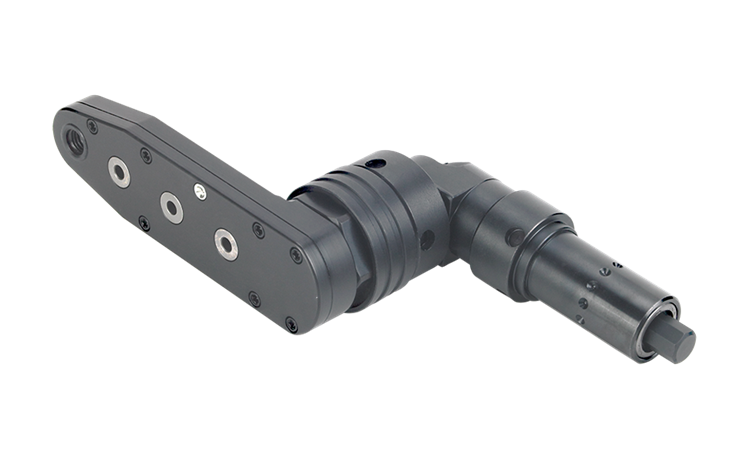

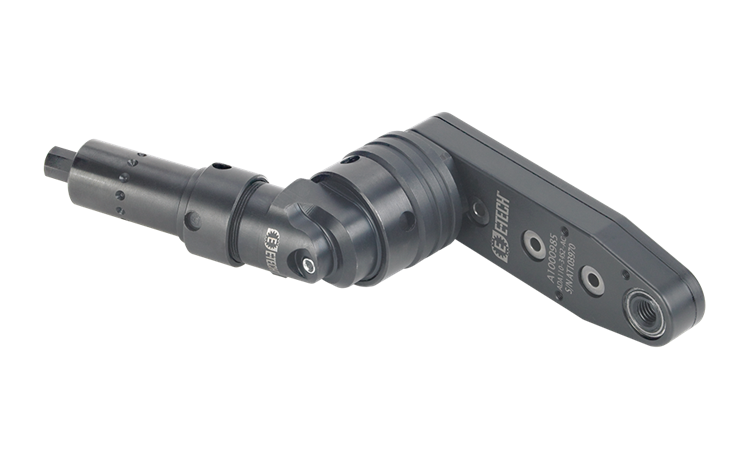

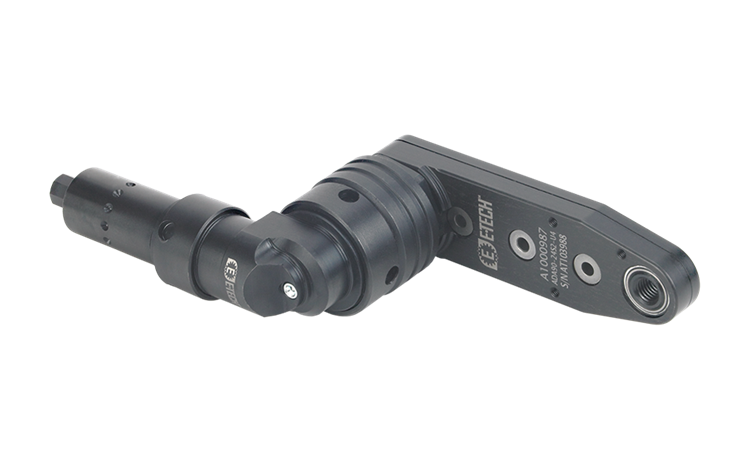

Versatile Angled Designs

90 and 100 degree versions – each can index in 30 degree increments through full 360 degrees.

Quick-Change Feature

Switch from pistol style to straight or angle head in seconds.

Superior Output Gear Bearing Design

Extends life up to 5x compared to tools from other manufacturers with more gear support to reduce heat, improve performance, and 25% less blown holes.

Excellent Ergonomics

Smaller, lightweight design improves maneuverability without sacrificing durability.

Split Housing Design

Allows for strong “I Beam” type construction to minimize deflection under load.

Innovative Stepped Axle

Positive containment of gear axles eliminates axle movement.

Tough Bearing Construction

Needle bearing support for input and idler gears.

Robust Engineering and Testing

FEA and CAD engineered for optimum life through material selection, heat treatment and precision CNC components.

4 Product Groups



0 Series

Light duty with radial/thrust bearing design to operate at speeds up to 6000 RPM - Max Drill Size 1/8”

1 Series

Standard duty with radial/thrust bearing design to operate at speeds up to 6000 RPM - Max Drill Size 3/16”

2 Series

Medium duty with radial/thrust bearing design to operate at speeds up to 6000 RPM - Max Drill Size 1/4”

3 Series

Heavy duty with radial/thrust bearing design to operate at speeds up to 6000 RPM - Max Drill Size 5/16”

Maintenance & Service



Traceability

Model, order and serial numbers engraved on each attachment.

Quality Control

Testing data captured and documented on each tool by serial number. Records the bearing temperature for heat rise, runout testing for wobble and free rock testing for play. All products are 100% tested prior to delivery.

Torx Head Cap Screws

Allows for repair without “stripping” of traditional hex head screws.

Lubrication

External grease fittings allow for preventative maintenance.

Threaded Input Housing

Allows for service of input drive area.
